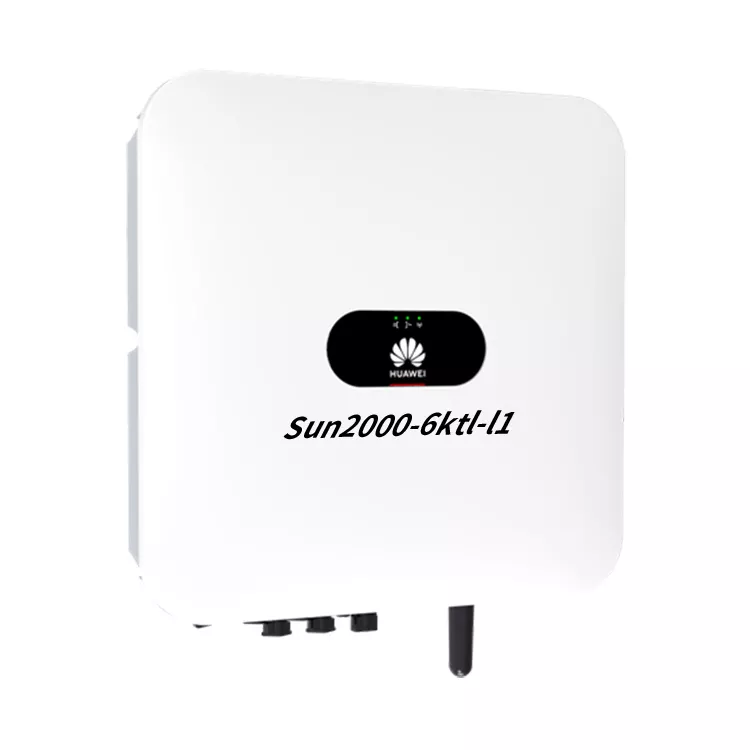

Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter

Product Categories

FUZHOU THINMAX SOLAR CO., LTD

Contact Now

Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter

Name: Huawei 5KW SUN20005KTLL1 with Single phase SUN20003456KTLL1 Grid Tied PV inverter 5000w On grid solar inverter
Brand: Huawei
Price: 789.00 USD

Quality Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter for sale

Place of Origin : Shenzhen

Brand Name : Huawei

Model Number : SUN2000-5KTL-L1

Input Voltage : 360v

Output Voltage : 220 Vac / 230 Vac / 240 Vac

Output Current : 25A

Output Frequency : 50Hz/60Hz

Output Type : Single

Size : 365*365*156mm

Type : DC/AC Inverters

Inverter Efficiency : 98.4%

Certificate : CE Rohs

Warranty : 5 years

Weight : 12kg

Packaging Details : One piece per carton.

Port : Ningbo, Shanghai, Shenzhen

Supply Ability : 100 Piece/Pieces per Week

Price : $789.00/pieces 1-4 pieces

Contact Now

Product Description

Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter

Specification

Efficiency
Maximum efficiency	98.3 %	98.4 %	98.4 %	98.4 %
The input
Recommended max. PV power 1	4,500 Wp	6,000Wp	7,500 Wp	9,000Wp
Max. input voltage	600 V 3
Start-up voltage	100 V
MPPT operating voltage range	360 V
Max. input current per MPPT	12.5 A
Max. short-circuit current	18 A
Number of MPP trackers	2
Max. number of inputs	2
Input (DC Battery)
Compatible Battery	HUAWEI Smart ESS Battery 5kWh – 30kWh 1
Operating voltage range	350 ~ 560 Vdc
Max operating current	15 A
Max charge power	5,000 W
Max discharge Power	3,300 W	4,400 W	5,000 W	5,000 W
The output
Grid connection	Single phase
Rated output	3,000 W	4,000W	4,991 W	6,000W
Maximum apparent power	3,300 VA	4,400VA	4,999 VA	6,000VA
Rated output voltage	220 Vac / 230 Vac / 240 Vac
Maximum active power	5,000W	6,000W	8,000W	10,000W
Output voltage frequency	50HZ/60HZ
Maximum output current	15 A	20 A	21.7 A	27.3 A
Adjustable power facto	0.8 leading ... 0.8 lagging
Max. total harmonic distortion	<3%
Backup power output	Yes (via Backup Box-5000 1)
Features & Protections
Anti-Islanding protection	Yes
DC reverse polarity protection	Yes
Insulation monitoring	Yes
DC surge protection	Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
AC surge protection	Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
Residual current monitoring	Yes
AC overcurrent protection	Yes
AC short-circuit protection	Yes
AC overvoltage protection	Yes
Over-heat protection	Yes
Arc fault protection	Yes
Battery reverse charging from grid	Yes
Battery reverse charging from grid	Yes
Nighttime Power Consumption	Yes

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

With more than 10 years experience of dealing with solar system. Thinmax provides high quality pre-sale and after-sale service for our customers. We also have factory and professional technicians so we can provide customized product services for customers too.

FAQ

Q1: What is the delivery time?

A1: It's according to the model. We will ship the items within 3 days if the items in stock.

Q2: What ways of payment do you accept.

A2: We can accept LC, Paypal, Credit card, etc.

Q3: Will you provide shipping sevice?

A3: Yes. We will choose the best shipping way and shipping company for the customers according to the demands.

Q3: What if we have problems after sale?

A4: Don't worry. We have professional technicians ready for our customers who can take care of the problems.

Q5: What is the minimum quantity?

A5: We can send a sample to you. If you are satisfied with our products and service. Please place larger quantity to us.

Q6: Are the inverters original?

A6: Yes. Of course. If it's not. We will return all money back to you.

Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter Images
